Ashing Furnaces

Carbolite Gero's ashing furnace range covers one of the most common applications for laboratory chamber furnaces: To heat combustible samples in order to analyse the resulting ash residue. As there is no single solution for all requirements, different furnaces tailored to ashing and burn-off applications are available.

.

Introduction to ashing

Ashing is the process of removing all the organic material from a sample by heating in air. The objective of the process may be to ascertain the proportional mass of the residual material (ash), or it may be an intermediate step in the preparation of the sample for other purposes, such as characterisation of the inorganic components through XRF (X-ray fluorescence), mass spectroscopy, or for other tests such as ash fusibility.

The ashing process

Prepared samples are heated in air until they react with the oxygen present and combust. The organic compounds within the sample are subsequently oxidised, and the residual ash comprises the inorganic, non-combustible compounds.

Some tests are defined by international standards such as ISO, EN, ASTM etc., to which both the process and the equipment used must comply. There are also processes with specific objectives, such as Loss on Ignition (LOI), which requires samples to be weighed before and after ashing to determine the reduction in mass caused by heating. It is also possible to weigh samples continuously during the heating process to record the rate at which the sample mass reduces, and to determine complete combustion, by using a furnace with an integral balance.

A specialised ashing furnace is the most appropriate piece of equipment in which to carry out this process. Carbolite Gero produce ranges of general purpose ashing furnaces, and those designed to comply with specific coal and coke testing standards.

Video: Ashing Process Safety - The Importance of Selecting the Correct Furnace


Click to view video

Video: Ashing Process Safety - The Importance of Selecting the Correct Furnace

Ashing Furnaces

Typically, an ashing furnace is designed to promote a high level of airflow through the chamber to aid sample combustion and remove the smoke created during processing.

The air is guided through the furnace insulation assembly to ensure that it is pre-heated before entering the chamber; this reduces the risk of inadvertently lowering the temperature during processing. The increased airflow also serves to carry any smoke and volatiles from the chamber and out of the exhaust.

An optional afterburner or thermal catalytic oxidiser fitted to the exhaust can further reduce the emissions escaping into the surrounding atmosphere.

Air is drawn through an inlet at the rear of the furnace and guided through the insulation where it is pre-heated before entering the chamber.

Because of the risk that exhaust fumes and volatiles emitted from samples could damage the heating elements, an ashing furnace is often fitted with silicon carbide (SiC) protection tiles that sit within the furnace chamber and provide a barrier between the samples and the heating elements.

In smaller models, the heating elements are wrapped around the outside of a ceramic muffle, into which samples are placed. The muffle contains the smoke and volatiles produced by the process, whilst protecting the heating elements from contamination.

For tests or processes where alumina/silica dust could contaminate results, or react with the sample to produce corrosive vapours, a fused quartz chamber may be necessary to protect both the furnace and the process.

Video: Thermal Catalytic Oxidiser (Catalytic Converter) reducing the amount of fumes exiting the furnace.


Click to view video

Video: Thermal Catalytic Oxidiser (Catalytic Converter) reducing the amount of fumes exiting the furnace.

Industries that use ashing processes

Both the food production and pharmaceutical industries ash samples of their products as part of their quality control checks to determine the amount of inorganic, indigestible matter contained within them. If necessary, samples can be ground down or milled to increase the surface area and enable them to be mixed with other compounds prior to heating.

Because the composition of products can vary due to their natural origin, the petrochemical industry frequently ashes samples of hydrocarbon materials to determine the amounts of metals and other inorganic chemicals present. This is important, as certain metals and minerals may cause damage to the refining equipment or later processes.

Industries that use ashing processes

Ashing example

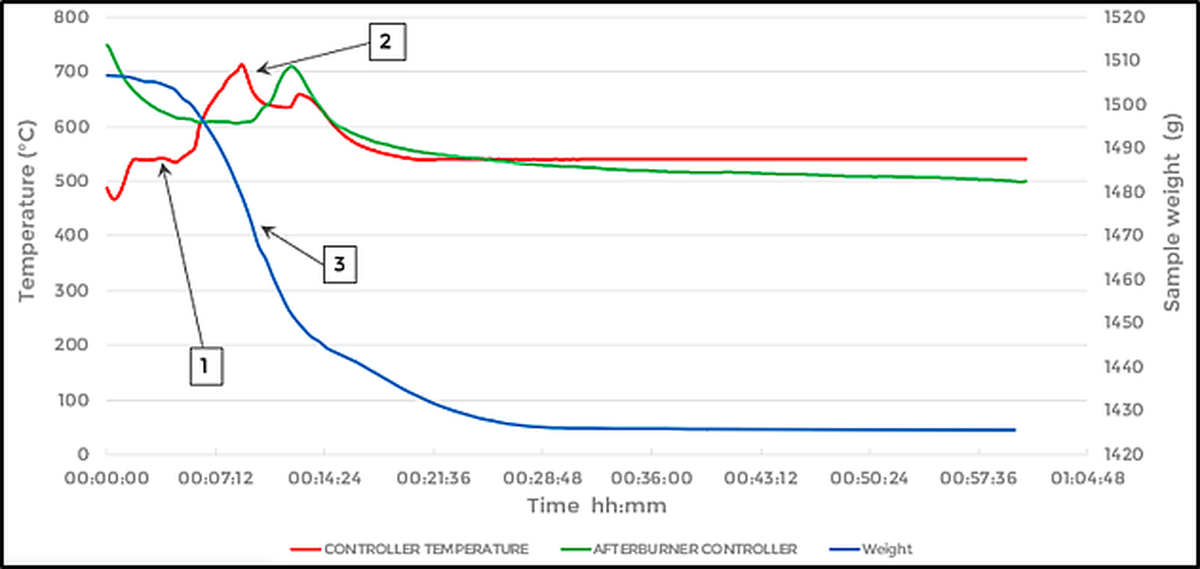

The following example shows the change in sample weight and chamber temperature within an ashing furnace fitted with an afterburner.

  1. The cold sample is placed into a hot chamber and ignites.
  2. Auto-ignition of sample causes the temperature to increase.
  3. The weight change occurs rapidly as the sample burns.
Ashing example

View inside of an ashing furnace

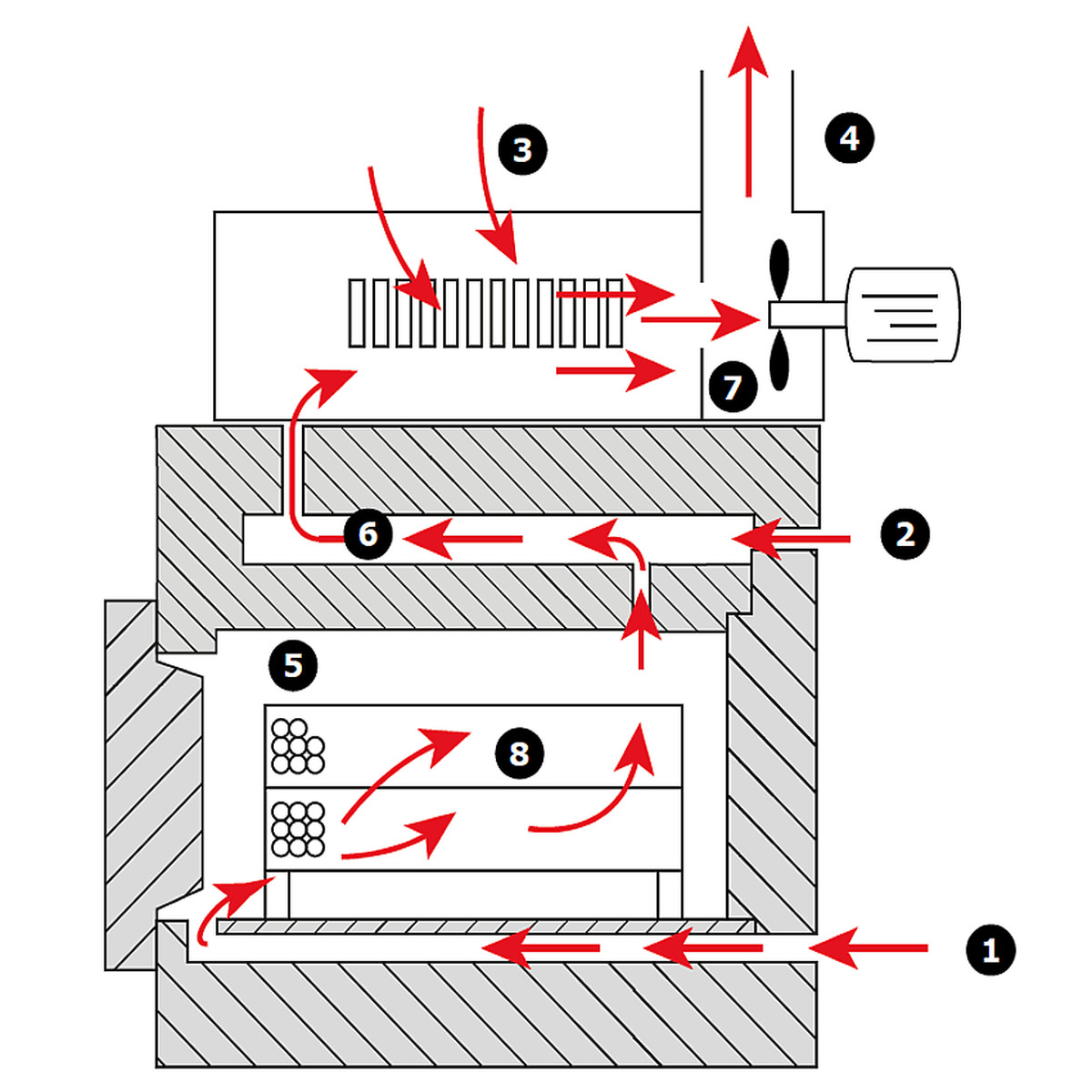

Cross section showing the ABF ashing furnace. Air is drawn through an inlet at the rear of the furnace, and guided through the insulation where it is pre-heated before entering the chamber. Smoke and volatiles exit into the afterburner where additional air enters to promote burning. A fan causes the fumes and fresh air to mix in the plenum and exit out of the exhaust.

  1. Air inlet – air is preheated before entering the chamber
  2. Air inlet into afterburner to ensure complete combustion
  3. Air inlet into plenum to cool the gases before they enter the extraction fan
  4. Chimney
  5. Furnace chamber
  6. Afterburner
  7. Extraction fan
  8. Two-tier perforated basket containing samples
View inside of an ashing furnace

Application Examples

Sample materials that are ashed in furnaces include food, soil and peat, plastic containers, rubber, animal feed/cereals, wool and natural fibre, paper, flour, pharmaceutical products, vegetable oils, paint, polyester and fibreglass, gelatine, sewage sludge, wood and test firing ceramics, soil to determine mineral content or plasticized PVC for calcium carbonate content.

Other processes that use an ashing furnace:

  • Sulphated ash determination
  • Combustion of coke and sulphur in spent catalysts
  • Loss on ignition measurement
  • To burn off mercury chloride residues
  • Filler content determination in paper
  • Removal of soot from samples of fumed silica grease
  • Cleaning ICP Torches
  • Volatile suspended solids in effluent analysis
  • Ash determination of coal samples
  • Resin burn-off of CFC test specimens

Contact us for a free consultation

Carbolite Gero products and services are available via a global network of daughter companies and fully trained distributors. Our staff will be happy to assist with any inquiry you might have.

Contact us for a free consultation and talk to a product specialist to find the most suitable solution for your application needs!


Contact us for a free consultation

Ashing Furnaces - FAQ

What is an ashing furnace?

An ashing furnace is a type of chamber furnace designed to allow materials to be burned at a closely controlled temperature. Air is drawn into the chamber by the tall chimney and is forced to pass between the insulation layers so that it is pre-heated before entering the chamber. This ensures that samples near the air inlet are not cooled by the airflow and byproducts that could attack the elements are thereby flushed out of the ashing furnace.

Which applications require an ashing furnace?

Ashing furnaces are frequently used in the testing of foods, plastics, and hydrocarbon materials such as coal. Tests may be defined within standard test methods, typical examples of which are ISO 1171:2010 and ASTM D3174-12.

What is the difference between a standard laboratory chamber furnace and an ashing furnace?

The difference between a standard laboratory and an ashing furnace is primarily the supply of preheated air to promote burning. Ashing furnaces are specially designed to have increased airflow to facilitate the combustion and subsequent ashing of materials.
