Air Recirculating Oven - HRF
The 750 °C HRF air recirculation ovens comprise two bench-mounted models and two floor-standing models. Equipped with powerful fans and horizontal air-guides these models are intended to provide rapid heating with high thermal transfer to the chamber contents and high uniformity within the chamber. These designs frequently form the base from which custom designed chambers with non-standard sizes or control configurations are made. HRF ovens are often supplied with modifications to enable heat treatment within AMS 2750F Nadcap compliant production environments.

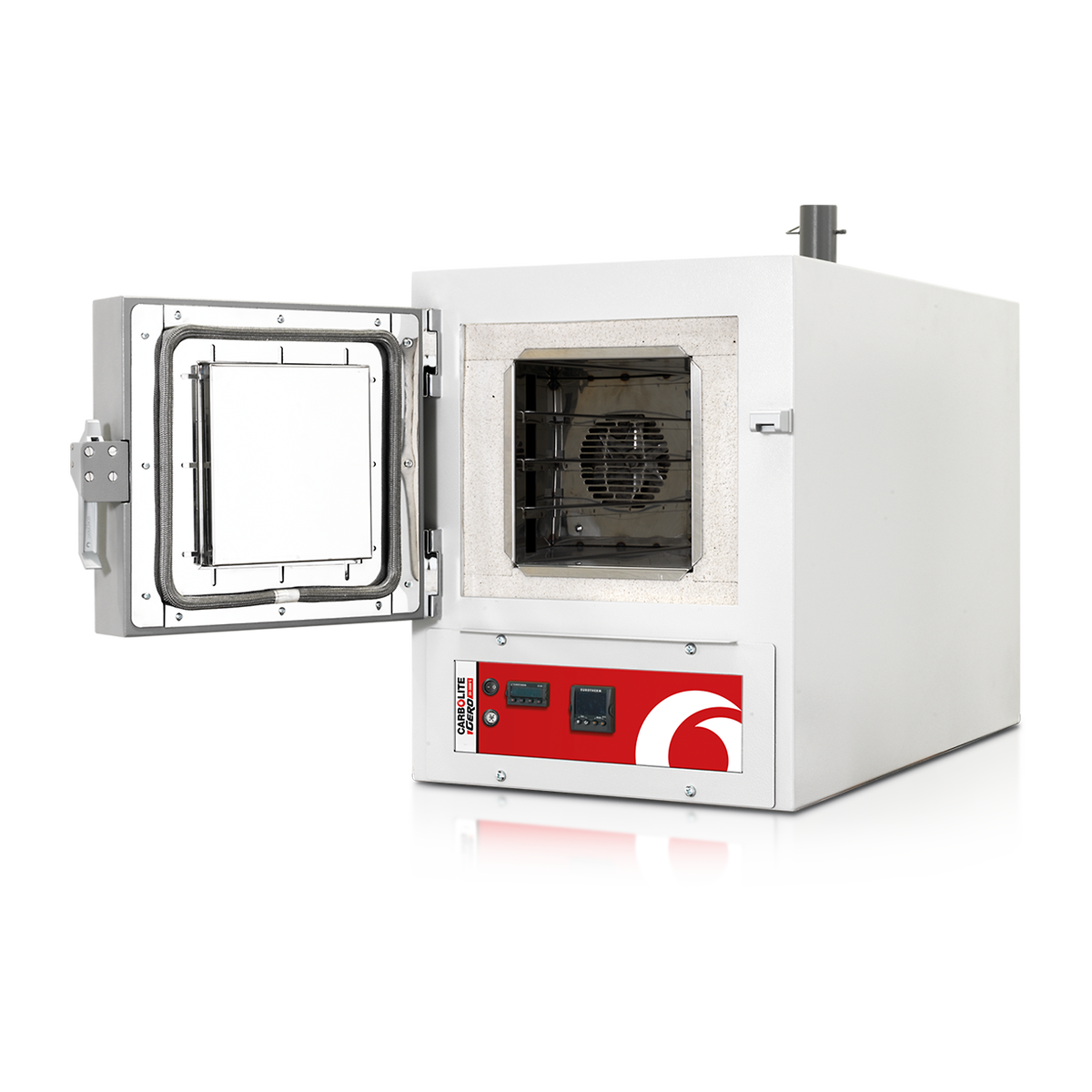

| HRF 7/22C | HRF 7/45B | |
|---|---|---|
| Max temp (°C) | 750 | 750 |
| Heat-up time (mins) | 63 | -- |
|
Dimensions: Internal H x W x D (mm) |
220 x 200 x 495 | 295 x 265 x 560 |
|
Dimensions: External H x W x D (mm) |
590 x 450 x 870 | 840 x 600 x 1000 |
| Shelves fitted / accepted | 0/3 | 0/3 |
| Shelf loading each / total (kg) | 10 / 20 | 10 / 20 |
| Configuration | Bench-top | Bench-top |
| Volume (litres) | 22 | 45 |
| Max power (W) | 3000 | 6000 |
| Thermocouple type | K | K |
| Weight (kg) | 61 | 110 |

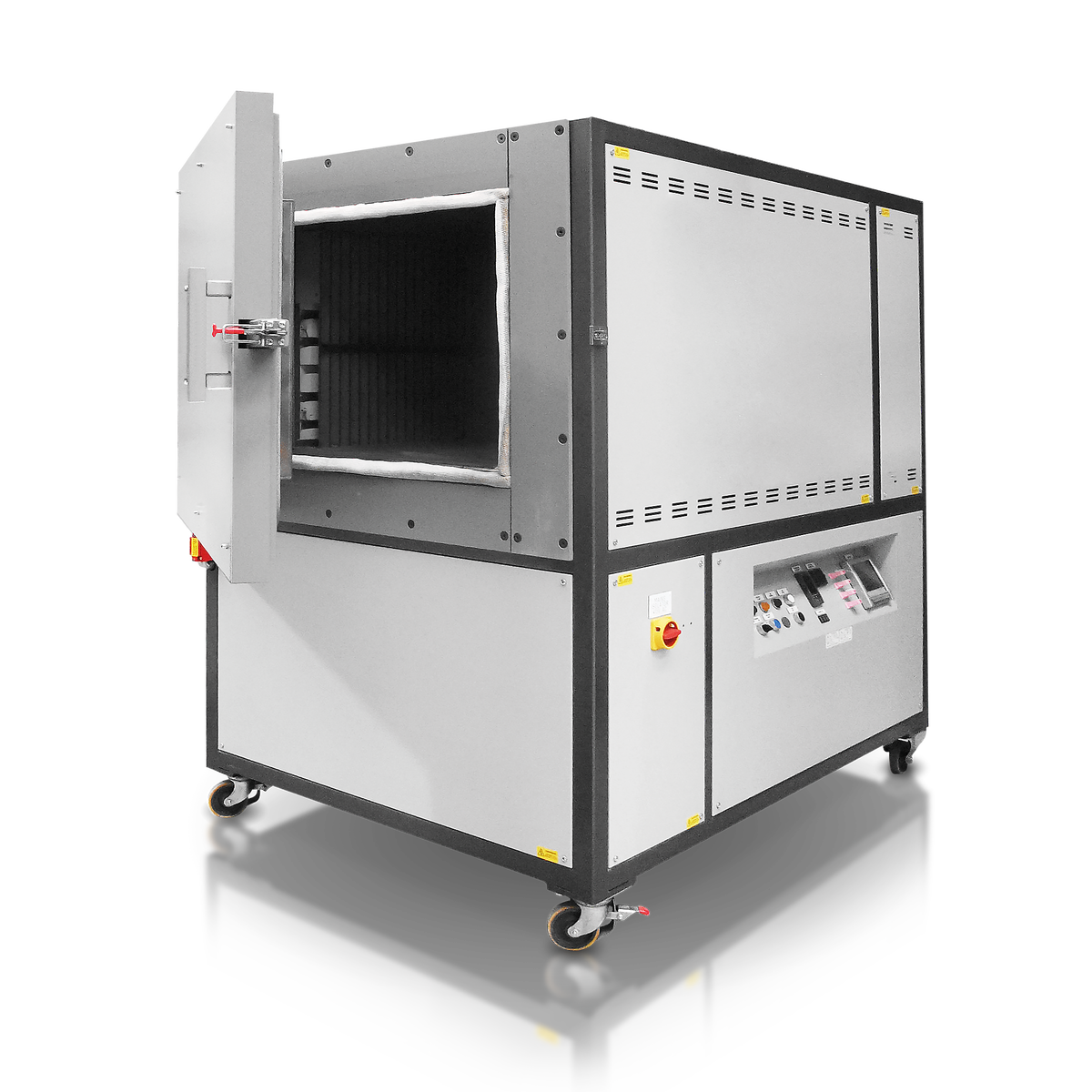

| HRF 7/112 | HRF 7/324 | |
|---|---|---|
| Max temp (°C) | 750 | 750 |
| Heat-up time (mins) | -- | -- |
|
Dimensions: Internal H x W x D (mm) |
400 x 400 x 700 | 600 x 600 x 900 |
|
Dimensions: External H x W x D (mm) |
1550 x 1000 x 1600 | 1800 x 1200 x 2280 |
| Shelves fitted / accepted | 0/2 | 1/1 |
| Shelf loading each / total (kg) | 15 / 40 | 50 / 50 |
| Configuration | Floor-standing | Floor-standing |
| Volume (litres) | 112 | 324 |
| Max power (W) | 18000 | 24000 |
| Thermocouple type | K | K |
| Weight (kg) | 480 | 1000 |
Please note
- External dimensions with door closed and including chimney
- Heat up rate is measured to 100°C below max, using an empty chamber
- HRF 7/22 and HRF 7/45 have 3 integral shelf runners
- Maximum power and heat up times are based on a 240V supply
Content may be subject to modifications or corrections
