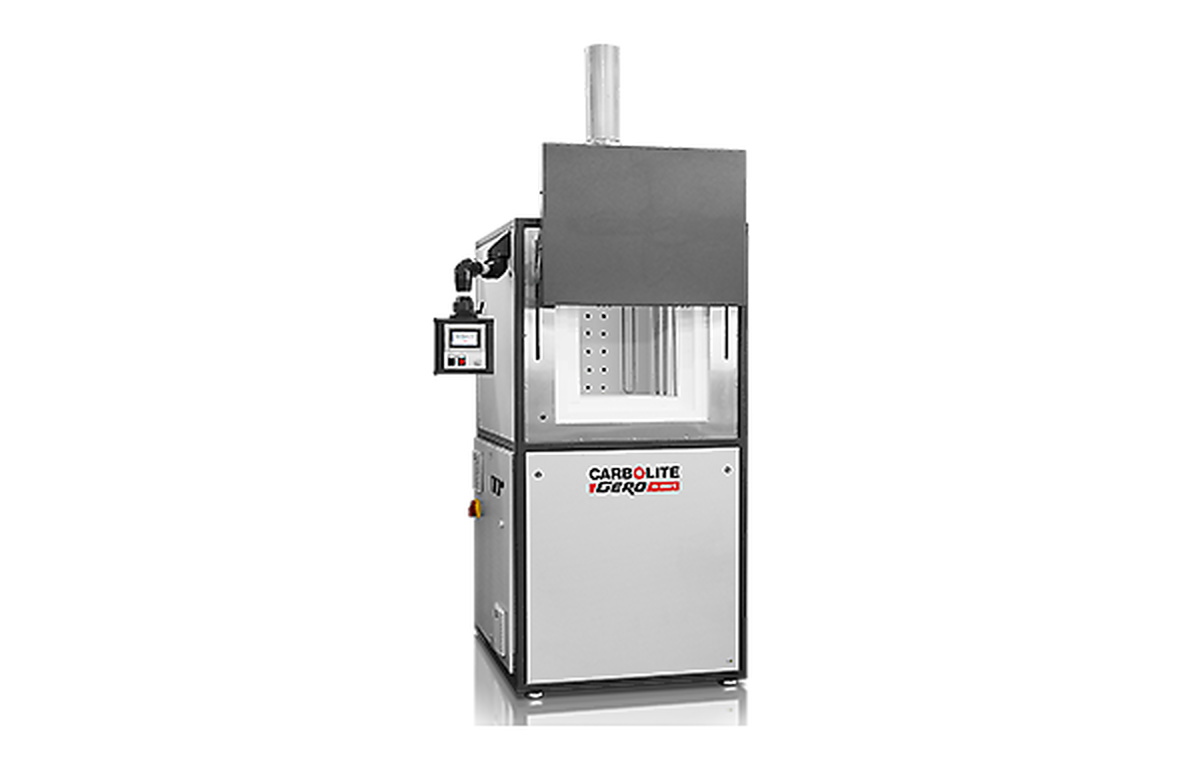

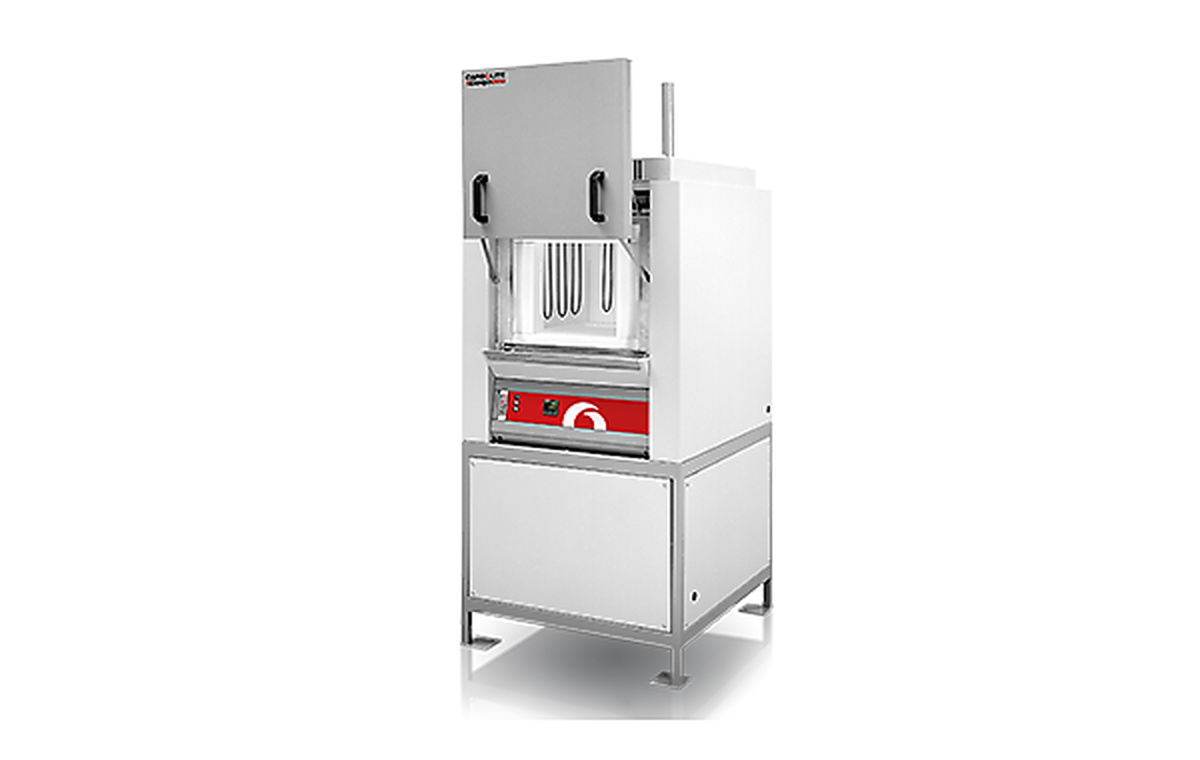

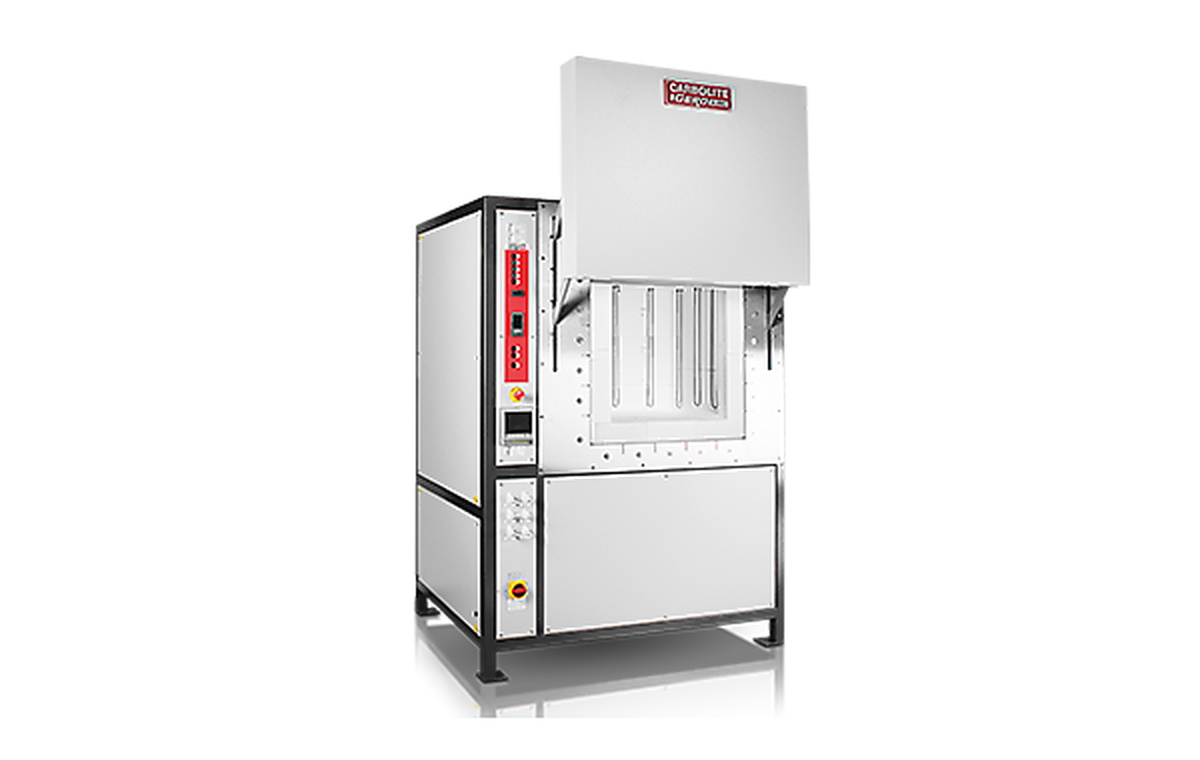

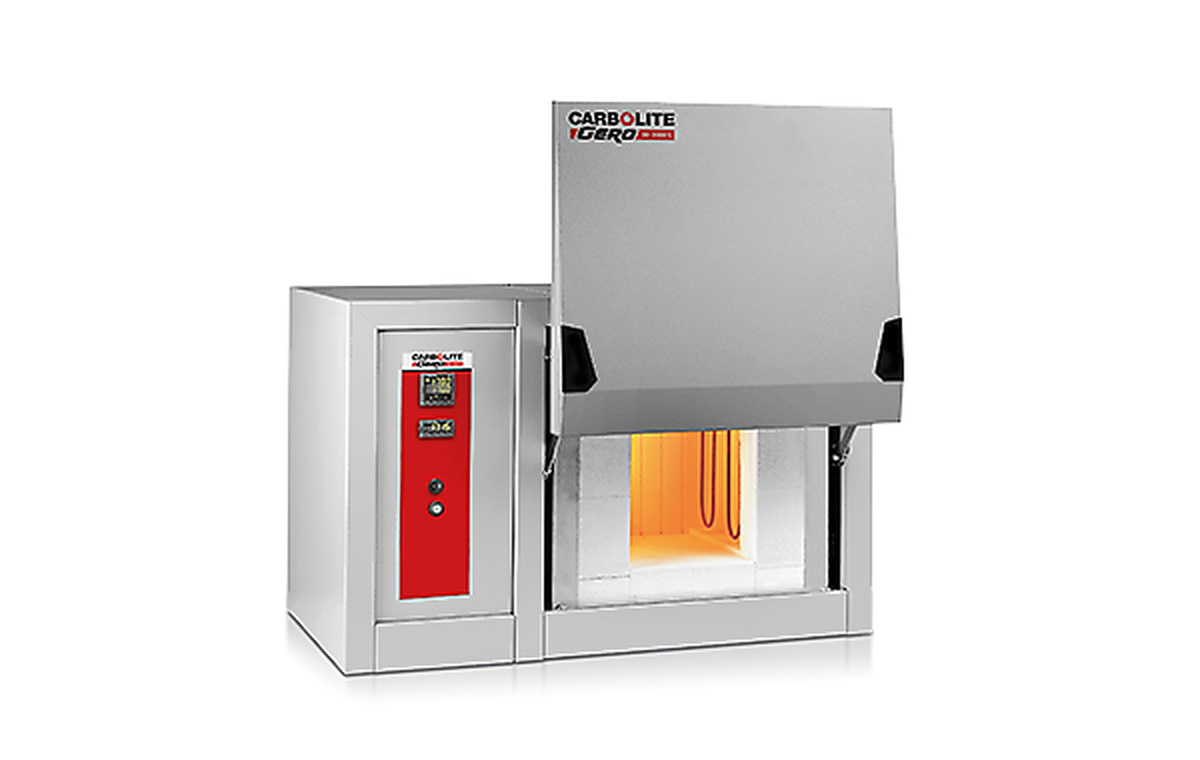

High Temperature Laboratory Furnace - HTF

The laboratory HTF high temperature furnace range comprises
1700 °C and 1800 °C models.

The two smaller models in each temperature are bench mounted and the larger units are floor-standing. These furnaces may be customised in order to satisfy specific customer requirements, e. g. the addition of catalytic afterburners for ceramic binder burn-off applications.

Standard features

• 1700°C & 1800°C maximum operating temperature
• From 4 to 10 litre capacities
• High quality molybdenum disilicide heating elements
• Vertical lift door keeps heated surface away from the user
• Advanced refractory interior, used in combination with energy efficient low thermal mass insulation
• Programmable EPC3016P1 controller
• Over-temperature protection
• Ethernet communications
• Fan cooling for low external case temperature

Options (specify these at time of order)

• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
