High Temperature Vertical Tube Furnace - HTRV

High Temperature Vertical Tube Furnace - HTRV

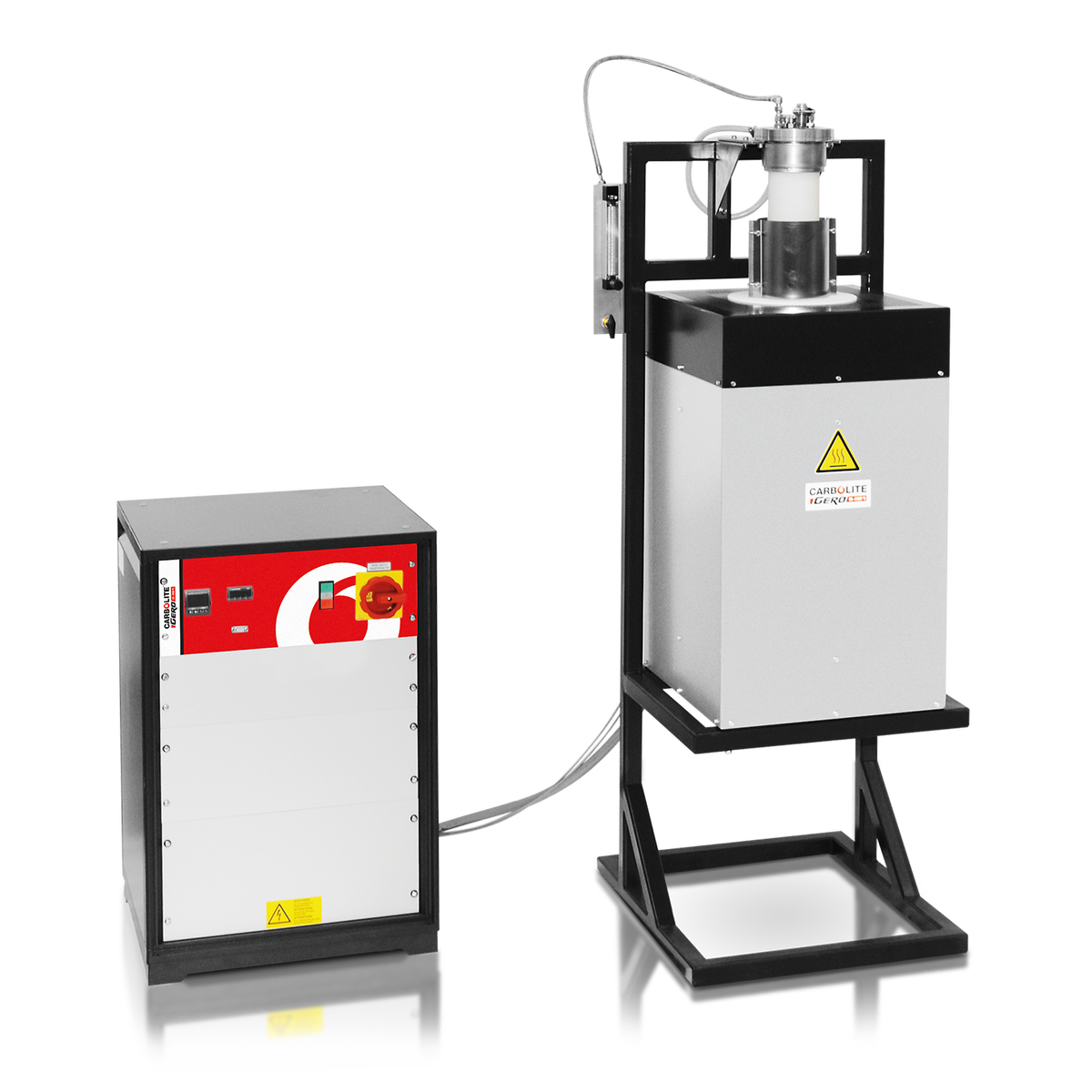

HTRV 18/100/500 with optional inert gas package and ceramic tube closed on one side

HTRV __/40/100

Max outer diameter accessory tube (mm) 40
Heated length (mm) 100

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 365 x 455 x 455
Furnace weight (kg) 30
Tube length for use in air (mm) 355
Tube length for use with modified atmosphere (mm) 890
Control module dimensions H x W x D (mm) 500 x 550 x 700
Control module weight (kg) 50
Uniform length ±5°C (mm) 50
Max power (W) 2000

HTRV __/40/250

Max outer diameter accessory tube (mm) 40
Heated length (mm) 250

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 515 x 455 x 455
Furnace weight (kg) 40
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 500 x 550 x 700
Control module weight (kg) 50
Uniform length ±5°C (mm) 125
Max power (W) 3000

HTRV __/40/500

Max outer diameter accessory tube (mm) 40
Heated length (mm) 500

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 765 x 455 x 455
Furnace weight (kg) 65
Tube length for use in air (mm) 755
Tube length for use with modified atmosphere (mm) 1290
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 60
Uniform length ±5°C (mm) 250
Max power (W) 6000

HTRV __/70/100

Max outer diameter accessory tube (mm) 70
Heated length (mm) 100

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 365 x 455 x 455
Furnace weight (kg) 30
Tube length for use in air (mm) 355
Tube length for use with modified atmosphere (mm) 890
Control module dimensions H x W x D (mm) 500 x 550 x 700
Control module weight (kg) 50
Uniform length ±5°C (mm) 50
Max power (W) 3000

HTRV __/70/250

Max outer diameter accessory tube (mm) 70
Heated length (mm) 250

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 515 x 455 x 455
Furnace weight (kg) 40
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 60
Uniform length ±5°C (mm) 125
Max power (W) 4800

HTRV __/70/500

Max outer diameter accessory tube (mm) 70
Heated length (mm) 500

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 765 x 455 x 455
Furnace weight (kg) 65
Tube length for use in air (mm) 755
Tube length for use with modified atmosphere (mm) 1290
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) 250
Max power (W) 8000

HTRV __/100/250

Max outer diameter accessory tube (mm) 100
Heated length (mm) 250

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 515 x 455 x 455
Furnace weight (kg) 45
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 60
Uniform length ±5°C (mm) 125
Max power (W) 6400

HTRV __/100/500

Max outer diameter accessory tube (mm) 100
Heated length (mm) 500

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 765 x 455 x 455
Furnace weight (kg) 70
Tube length for use in air (mm) 755
Tube length for use with modified atmosphere (mm) 1290
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) 250
Max power (W) 10400

HTRV __/150/250

Max outer diameter accessory tube (mm) 150
Heated length (mm) 250

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 515 x 580 x 580
Furnace weight (kg) 55
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) -
Max power (W) 8000

HTRV __/150/500

Max outer diameter accessory tube (mm) 150
Heated length (mm) 500

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 765 x 580 x 580
Furnace weight (kg) 80
Tube length for use in air (mm) 755
Tube length for use with modified atmosphere (mm) 1290
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) -
Max power (W) 12000

HTRV __/200/250

Max outer diameter accessory tube (mm) 200
Heated length (mm) 250

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 515 x 580 x 580
Furnace weight (kg) 70
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) -
Max power (W) 10000

HTRV __/200/500

Max outer diameter accessory tube (mm) 200
Heated length (mm) 500

[read more] [read less]

Max temp (°C) 1600, 1700, 1800
Dimensions:
External H x W x D (mm)		 765 x 580 x 580
Furnace weight (kg) 95
Tube length for use in air (mm) 355
Tube length for use with modified atmosphere (mm) 890
Control module dimensions H x W x D (mm) 850 x 550 x 700
Control module weight (kg) 90
Uniform length ±5°C (mm) -
Max power (W) 18500

Please note
- Heat up rate when using a ceramic work tube must be limited to 5 °C/min
- Further to the depth of the control module 150 mm for the power plugs and other plugs needs to be added
- The power supply is based on 200 – 240 V for 1 phase and 380 – 415 V for 3 phase power
- Minimum uniform length in horizontal furnace with insulation plugs fi tted at 100 °C below max. temperature
- Maximum continuous operating temperature is 100°C below maximum temperature
- Power supply: a = 1 phase (16A)+N / b = 3 phase (16A)+N / c = 3 phase (32A)+N / d = 3 phase (63A)+N

Content may be subject to modifications or corrections

HTRV __/40/100 HTRV __/40/250 HTRV __/40/500
Max temp (°C) 1600, 1700, 1800 1600, 1700, 1800 1600, 1700, 1800
Max outer diameter accessory tube (mm) 40 40 40
Heated length (mm) 100 250 500
Dimensions:
External H x W x D (mm) 		365 x 455 x 455 515 x 455 x 455 765 x 455 x 455
Furnace weight (kg) 30 40 65
Tube length for use in air (mm) 355 505 755
Tube length for use with modified atmosphere (mm) 890 1040 1290
Control module dimensions H x W x D (mm) 500 x 550 x 700 500 x 550 x 700 850 x 550 x 700
Control module weight (kg) 50 50 60
Uniform length ±5°C (mm) 50 125 250
Max power (W) 2000 3000 6000
HTRV __/70/100 HTRV __/70/250 HTRV __/70/500
Max temp (°C) 1600, 1700, 1800 1600, 1700, 1800 1600, 1700, 1800
Max outer diameter accessory tube (mm) 70 70 70
Heated length (mm) 100 250 500
Dimensions:
External H x W x D (mm) 		365 x 455 x 455 515 x 455 x 455 765 x 455 x 455
Furnace weight (kg) 30 40 65
Tube length for use in air (mm) 355 505 755
Tube length for use with modified atmosphere (mm) 890 1040 1290
Control module dimensions H x W x D (mm) 500 x 550 x 700 850 x 550 x 700 850 x 550 x 700
Control module weight (kg) 50 60 90
Uniform length ±5°C (mm) 50 125 250
Max power (W) 3000 4800 8000
HTRV __/100/250 HTRV __/100/500 HTRV __/150/250
Max temp (°C) 1600, 1700, 1800 1600, 1700, 1800 1600, 1700, 1800
Max outer diameter accessory tube (mm) 100 100 150
Heated length (mm) 250 500 250
Dimensions:
External H x W x D (mm) 		515 x 455 x 455 765 x 455 x 455 515 x 580 x 580
Furnace weight (kg) 45 70 55
Tube length for use in air (mm) 505 755 505
Tube length for use with modified atmosphere (mm) 1040 1290 1040
Control module dimensions H x W x D (mm) 850 x 550 x 700 850 x 550 x 700 850 x 550 x 700
Control module weight (kg) 60 90 90
Uniform length ±5°C (mm) 125 250 -
Max power (W) 6400 10400 8000
HTRV __/150/500 HTRV __/200/250 HTRV __/200/500
Max temp (°C) 1600, 1700, 1800 1600, 1700, 1800 1600, 1700, 1800
Max outer diameter accessory tube (mm) 150 200 200
Heated length (mm) 500 250 500
Dimensions:
External H x W x D (mm) 		765 x 580 x 580 515 x 580 x 580 765 x 580 x 580
Furnace weight (kg) 80 70 95
Tube length for use in air (mm) 755 505 355
Tube length for use with modified atmosphere (mm) 1290 1040 890
Control module dimensions H x W x D (mm) 850 x 550 x 700 850 x 550 x 700 850 x 550 x 700
Control module weight (kg) 90 90 90
Uniform length ±5°C (mm) - - -
Max power (W) 12000 10000 18500

Please note
- Heat up rate when using a ceramic work tube must be limited to 5 °C/min
- Further to the depth of the control module 150 mm for the power plugs and other plugs needs to be added
- The power supply is based on 200 – 240 V for 1 phase and 380 – 415 V for 3 phase power
- Minimum uniform length in horizontal furnace with insulation plugs fi tted at 100 °C below max. temperature
- Maximum continuous operating temperature is 100°C below maximum temperature
- Power supply: a = 1 phase (16A)+N / b = 3 phase (16A)+N / c = 3 phase (32A)+N / d = 3 phase (63A)+N

Content may be subject to modifications or corrections
